CYLINDER HEAD / CRANKCASE FOR KAWASAKI FD MOTORS

PISTON / CRANKSHAFT

Item numbers

130

BOLT-FLANGED, 6X25

130AA-0625 130AA0625

Not available

130

BOLT-FLANGED

130B0625 130B0625

Not available

130A

BOLT-FLANGED, 8X16

130AA-0816 130AA0816

Not available

130A

BOLT-FLANGED

130B0816 130B0816

Not available

130B

BOLT-FLANGED

130BA-0845 130BA0845

Not available

130B

BOLT-FLANGED

130G0845 130G0845

Not available

130C

BOLT-FLANGED

130G0860 130G0860

Not available

670

O RING, 10MM

670B2010 670B2010

1,62 €

Unit Price Excl Tax

11004

GASKET-HEAD

11004-2136 110042136

Not available

11008

HEAD-COMP-CYLINDER

11008-2141 110082141

Not available

11008A

HEAD-COMP-CYLINDER

11008-6037 110086037

Not available

11022

CASE-ROCKER

11022-0023 110220023

14,50 €

Unit Price Excl Tax

11022

CASE-ROCKER

11022-2061 110222061

Not available

11022A

CASE-ROCKER

11022-0024 110220024

Not available

11022A

CASE-ROCKER

11022-2069 110222069

Not available

11060

GASKET, ROCKER CASE

11060-2065 110602065

9,31 €

Unit Price Excl Tax

11060A

GASKET, BREATHER COVER

11060-2091 110602091

6,16 €

Unit Price Excl Tax

11060B

GASKET, CRANKCASE COVER

11060-2324 110602324

Not available

13183

PLATE

13183-2389 131832389

Not available

13270

PLATE

13270-2040 132702040

Not available

14024

COVER

14024-2275 140242275

Not available

16126

VALVE

16126-2179 161262179

Not available

32151

PIPE, OIL GAUGE

32151-203-29H 3215120329H

Not available

49015

COVER-CRANKCASE

49015-6199 490156199

Not available

49120

CRANKCASE-COMP

49120-6109 491206109

Not available

59071

JOINT

59071-2079 590712079

Not available

92004

STUD

92004-2142 920042142

Not available

92009

SCREW

92009-2308 920092308

Not available

92043

92043-1037 920431037

Not available

92049

SEAL-OIL

92049-2013 920492013

9,54 €

Unit Price Excl Tax

92049A

SEAL-OIL, VC6X10X2.5

92049-2097 920492097

1,89 €

Unit Price Excl Tax

92049B

SEAL-OIL

92049-2205 920492205

6,06 €

Unit Price Excl Tax

92066

PLUG

92066-2068 920662068

Not available

92143

COLLAR

92143-2010 921432010

Not available

92151

BOLT

92151-2058 921512058

Not available

92151A

BOLT

92151-2067 921512067

Not available

92151B

BOLT

92151-2072 921512072

Not available

92170

CLAMP

92170-2002 921702002

0,36 €

Unit Price Excl Tax

92190

TUBE

92190-2168 921902168

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Kawasaki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

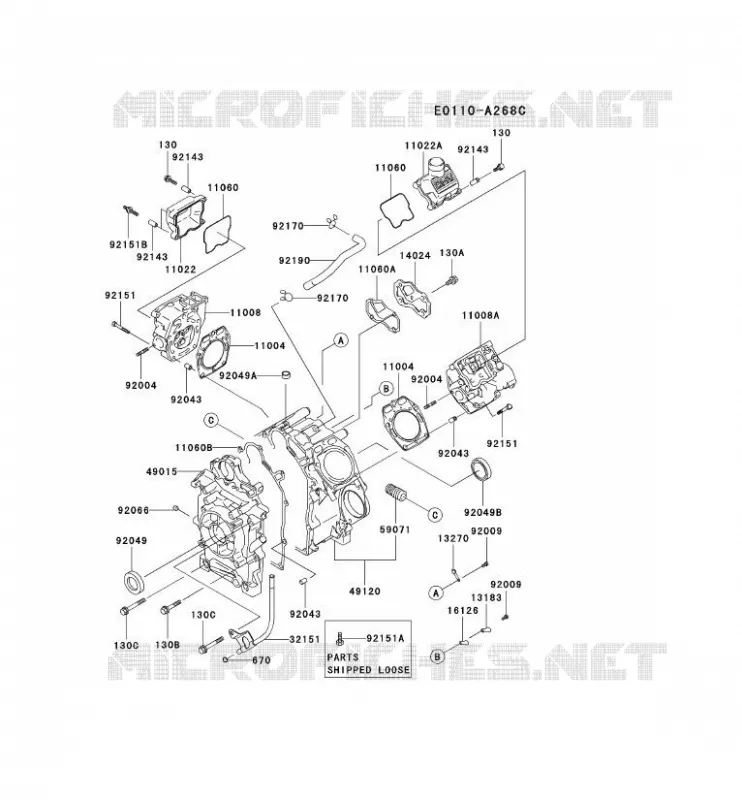

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.
Find on this page all the original spare parts relating to the CYLINDER HEAD/CRANKCASE of your Kawasaki of FD501D. Let us know if you have any questions.
